The new logger family

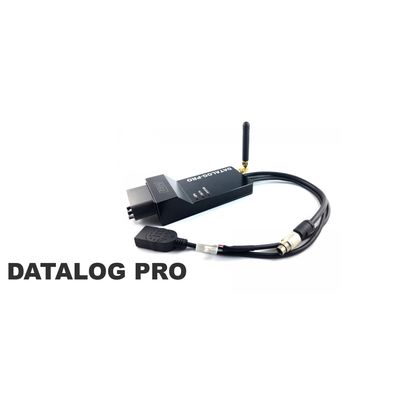

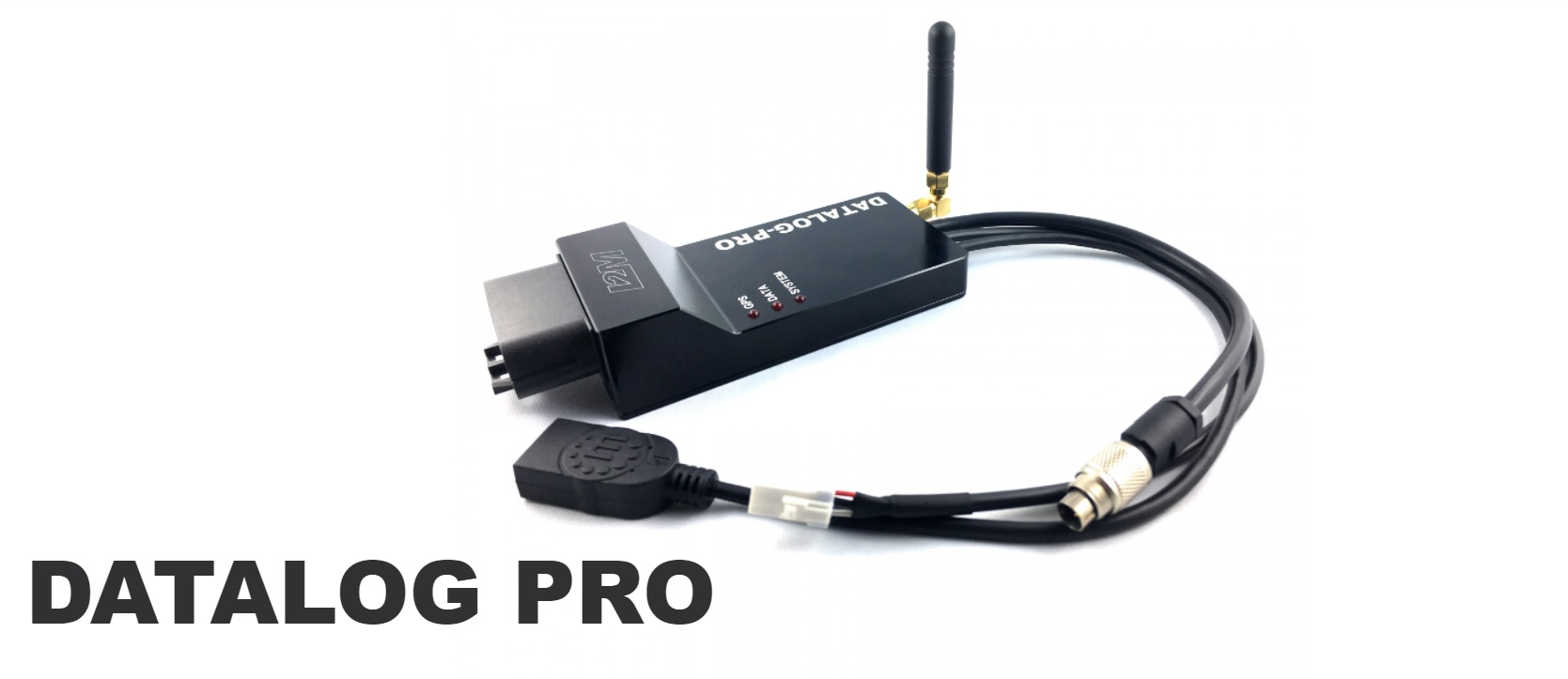

The DataLog Pro is developed on the same electronics as the Chrome Pro2 with which it also shares most of the software. Designed for those who want the best from their electronics, but without being able to replace the dashboard of their motorcycle. The DataLog Pro has a can bus with acquisition of over 150 fully configurable channels, integrated lambda controller, 7 analog inputs and integrated TPMS receiver. Developed from the experience gained from the collaboration with Yamaha in the WSBK, and with the historic Team Pedercini.
Thanks to the use of the same hardware as the Chrome Pro 2, it is able to read and acquire over 128 Can Bus channels alongside the 30 standard ones, including speed, rpm, external analogue, tire pressures and temperatures, GPS, gears ... Its hardware allows to make the acquisition of the channels completely configurable with a maximum frequency of 500Hz for each channel, thus reaching a total sampling frequency of over 65 kSample / s! The DataLog Pro can be configured via a USB stick but also via a special configuration cable.

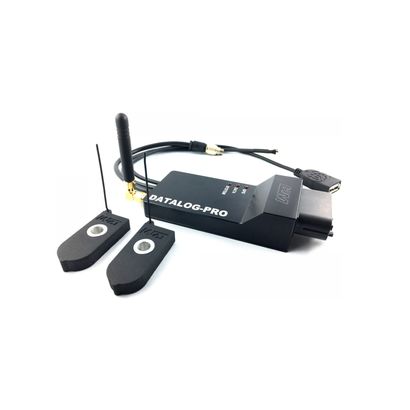

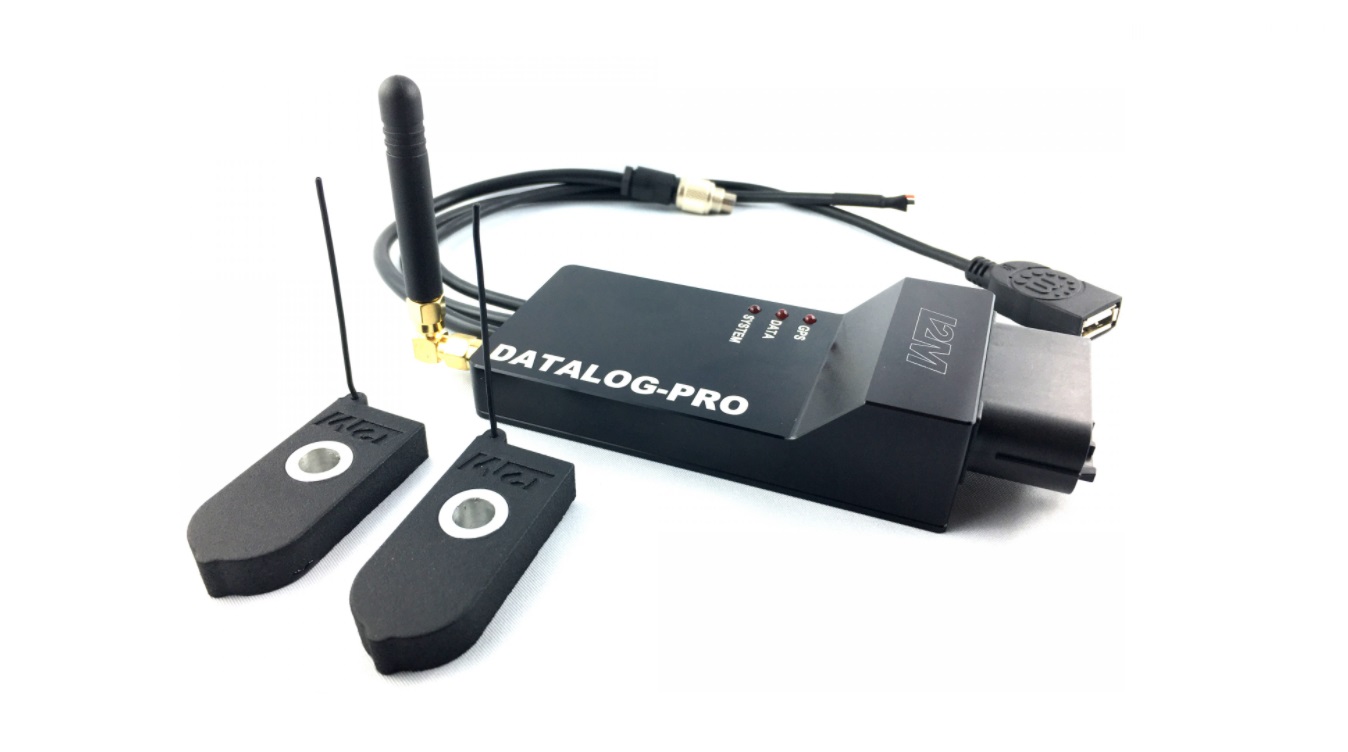

The DataLog Pro integrates a 433MHz receiver inside it which allows it to receive the signals of our TPMS sensors by storing up to 4 sensors for each wheel. It is therefore possible to always monitor the pressure of both tires and the temperature of the rim so as to check correct heating with the electric blankets and study the temperature behavior during use.In order to maximize the reception of the TPMS signal, it is possible to remotely remote control the antenna using the appropriate shielded cable and support.

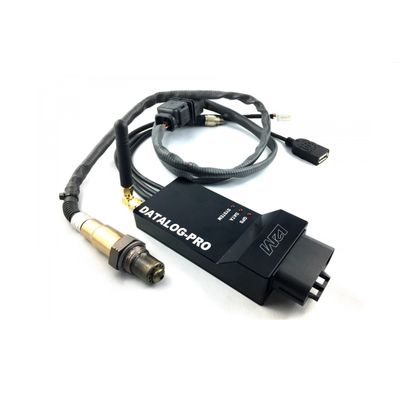

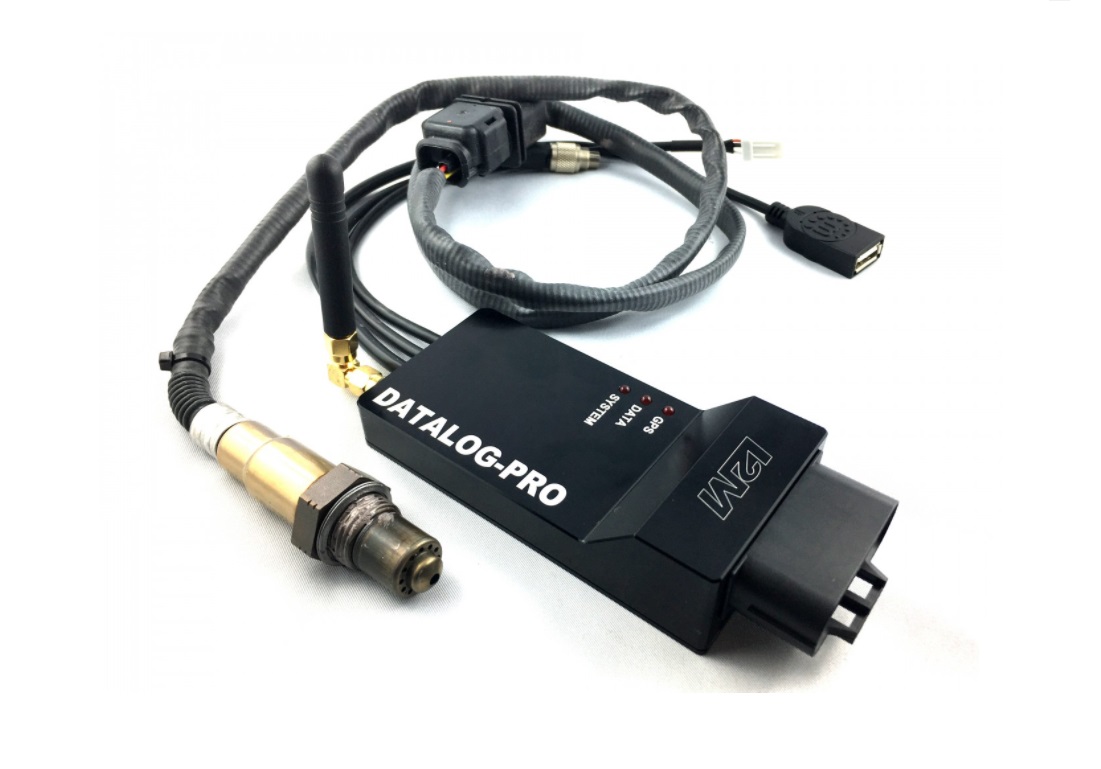

The DataLog Pro incorporates inside the controller for the Lambda BOSCH LUS 4.9 probe which can therefore simply be connected to its main wiring.
To its front connector it is possible to connect, in a totally plug & play way, a sensor wiring to connect external analog sensors such as potentiometers, brake pressure sensors, infrared temperature sensors ..
The DataLog Pro is supplied with:
- DataLog Pro
- Antenna with 90 degree SMA joint for TPMS receiver
- GPS receiver
- Main wiring

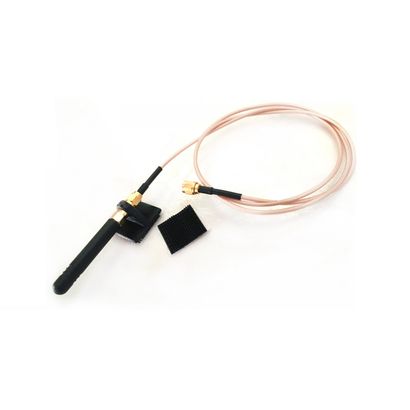

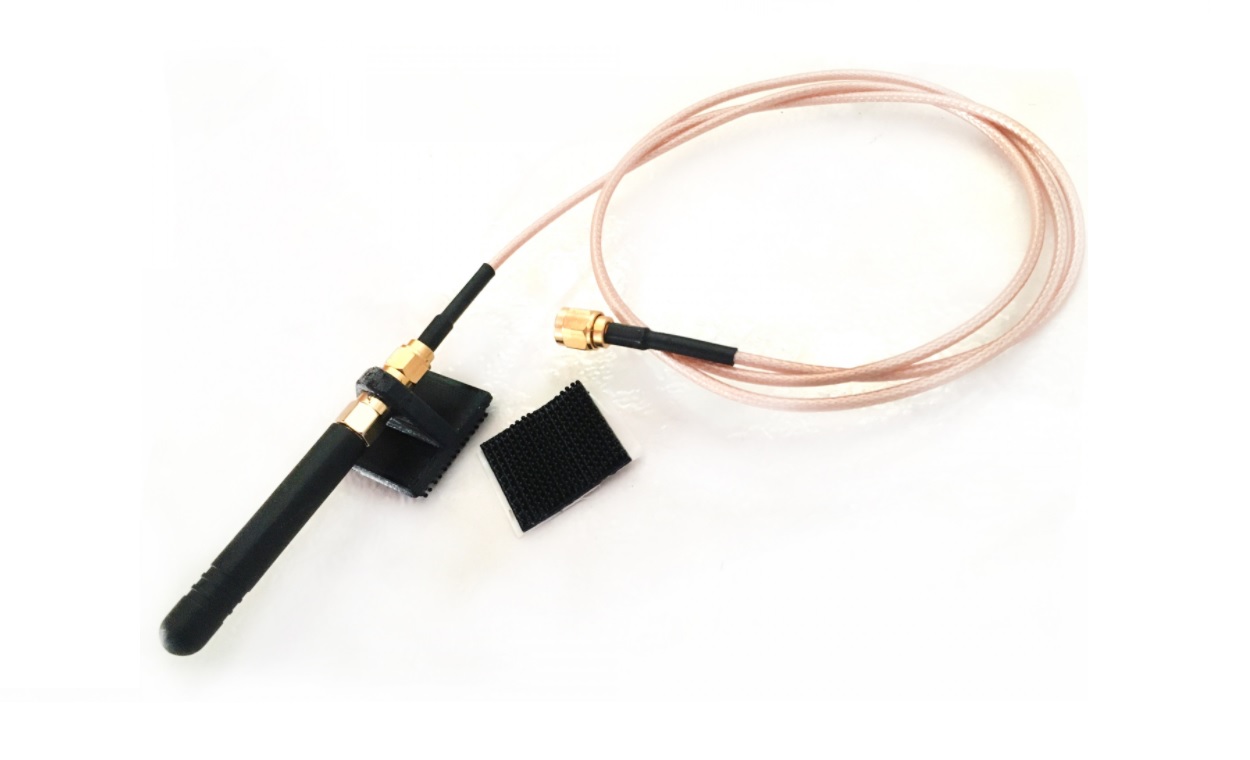

- Extension with support for TPMS antenna
Characteristics
- 1GHz processor with 1GB of memory
- CNC Aluminum case
- Waterproof
- Trajectory detection and GPS speed at 10Hz with 66 channels in parallel
- Simple and intuitive interface
- Configurable via USB stick, or with USB cable (otional)
- 1GB of internal memory
- Ability to save data also directly on external key
- 7 10-bit analog inputs
- 2 independent speed inputs
- 1 RPM input
- Downloading data with USB2 connection
- 128 Can Bus channels at 500Hz acquisition frequency each
- Overall sampling rate greater than 65kSample / s
- Auxiliary can bus for expansion modules
- Integrated lambda probe controller for BOSCH LSU sensor 4.9
- TPMS receiver with 4 pre-programmable channels per wheel
