The Chrome Plus has gained (on bikes with a Can Bus) two new 100Hz analog channels, thus increasing to 10 the available 100Hz channels that sums to the RPM, front and rear speed, GPS speed and acceleration, leaning angle and 10 10Hz customized channels depending on bike model. Now also the GPS altitude channel is available. Thanks to the power of the Chrome Plus it is now possible to implement the DDS (Danas Dynamic Settings) that enables to change some parameters like map or Traction control level corner by corner on every track! (now available on ZX10R 2016 and Yamaha R1>2015).
Pairing DANAS software with data from lambda sensor with stoichiometric functions one can create his own map directly on track

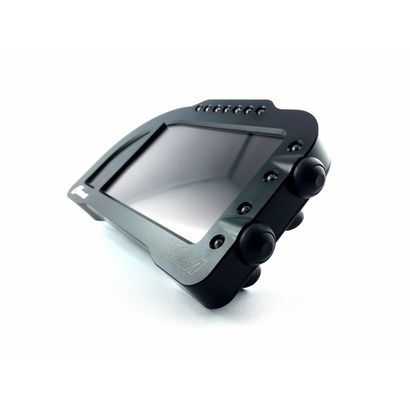

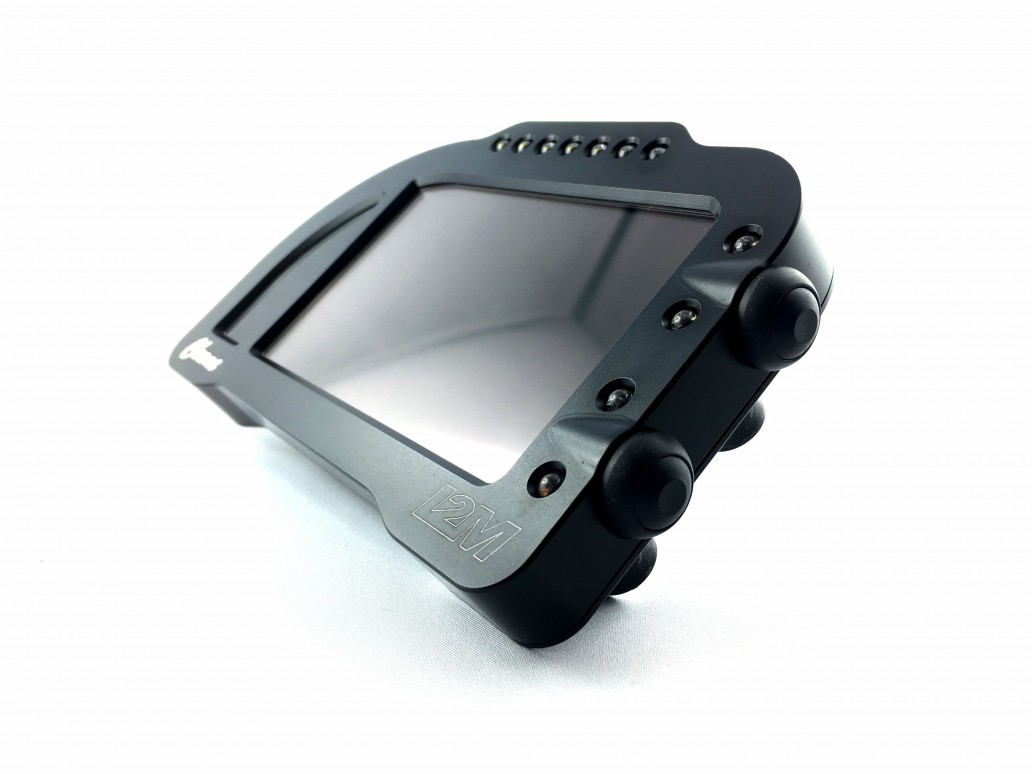

- The Chrome Plus dashboard is the new evolution in the Chrome family. In this new version all the features have been enhanced, starting from its famous shape and its true color display 800x400, all the inside electronic has been completely reengineered with a new 1GHz processor and a 1GB RAM and so much as 16GB internal memory. Now you can have together the classic monochrome backgrounds, and new backgrounds such as carbon look and analog tachometer. It gained new lateral RGB alarms and all the integrated electronics for the Bosch LSU 4.9 lambda sensor. Pairing its data with Danas stoichiometric functions it is possible to create your own fuel map while on track.

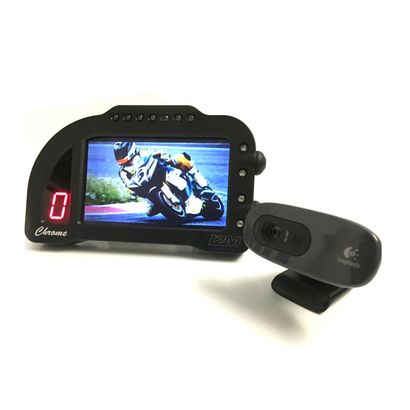

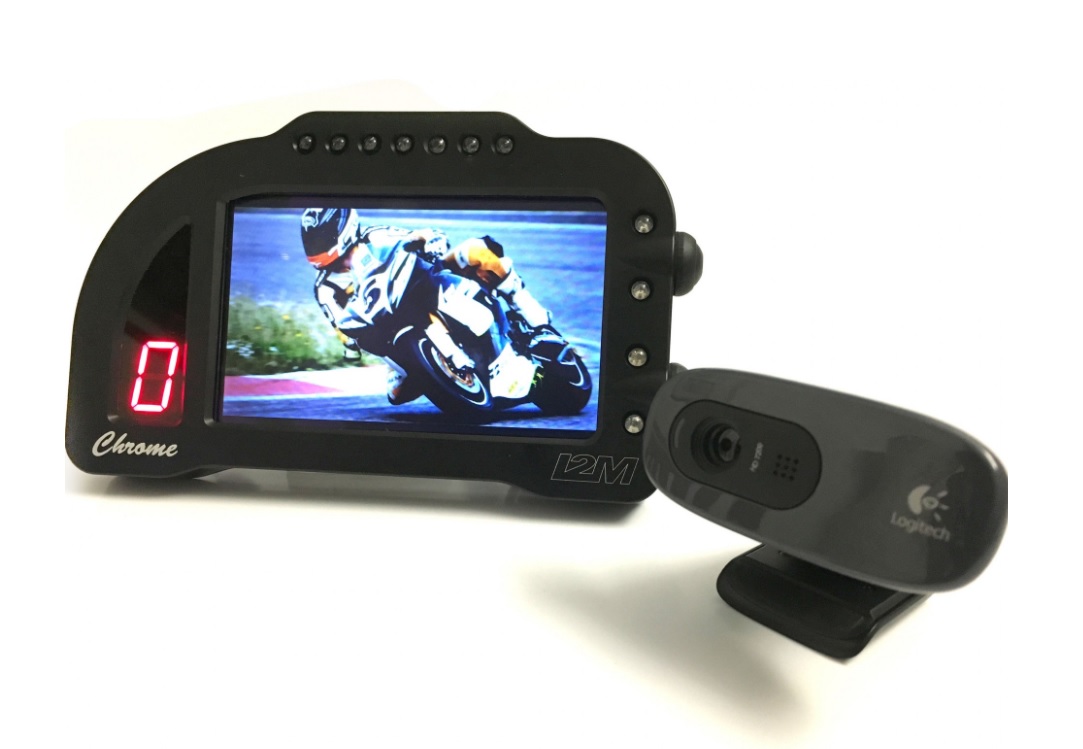

- Chrome Plus has anew video input where you can plug a Logitech cam C270 [1280x720 25fps resolution] , while the audio recording is provided by an internal mic , thus protected from the wind , so to have an optimal bike engine sound rendering.A CNC aluminum case is available to substitute the original Logitech C270 plastic case. This makes the webcam water resistant and has a gopro supports compatible connection. It also has a screw binder connector to plug it directly to Chrome. If the 720p resolution is not enough, the new Chrome Plus can drive an external GoPro cam via WiFi, it can turn it on and off and start recording in sync with data acquisition. Thus you can create a synchronized video with acquired data.

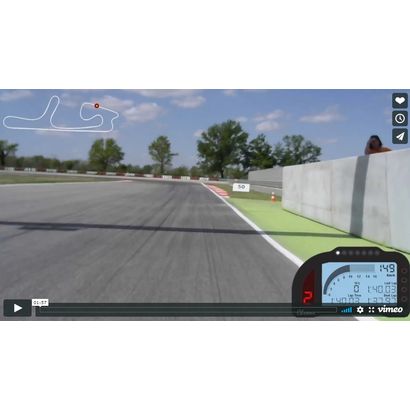

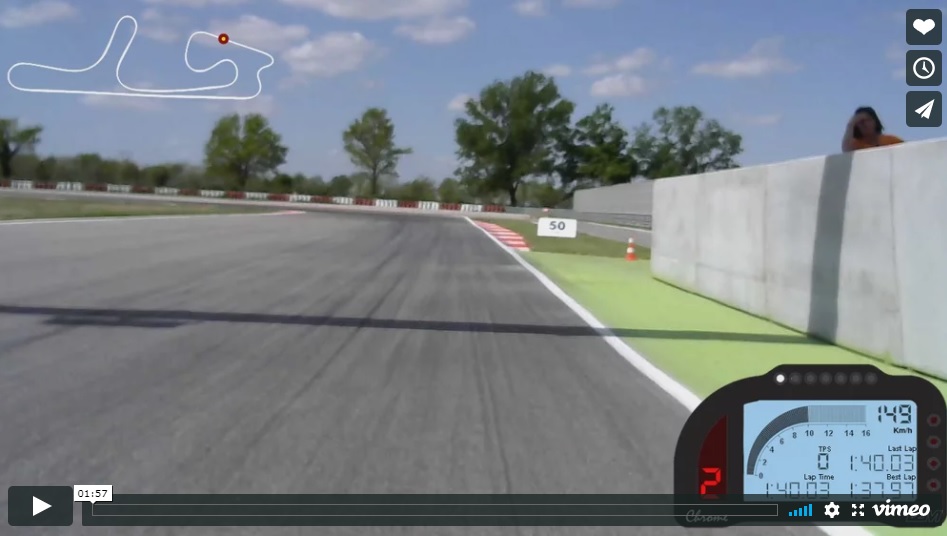

- Thanks to Chrome Plus it is now easy to create video with data footage and use them to analyze performances by Danas new video features. Chrome can automatically connect to an external network, when in the box. One can download data easily and rapidly directly from a PC.

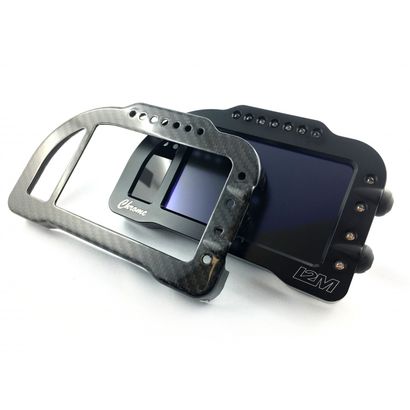

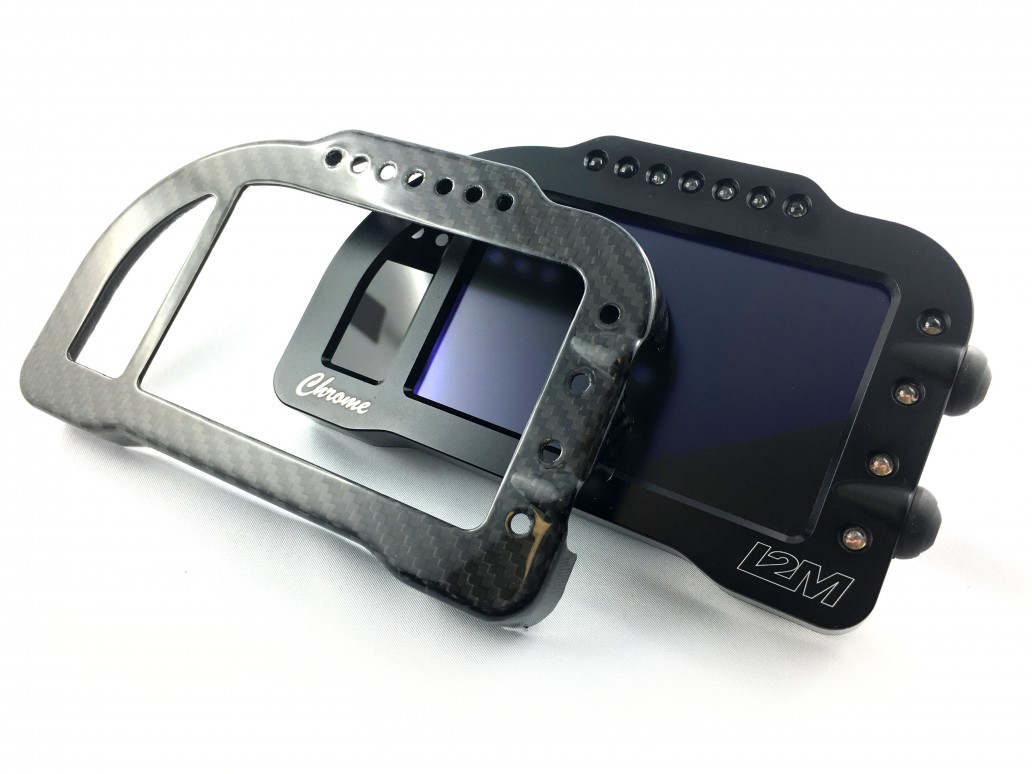

- A carbon cover is available both for Chrome Lite and for Chrome Plus. It protects the aluminum case from sractches and dirt in case of a crash. The cover is easily mount by the rubber inside.
Features
- 800x480 Graphic Color Display
- High visibility even in direct sunlight
- 1GHz Processor, 1GB RAM and 16 GB internal memory
- CNC Aluminum case
- Fully customizable TRACK/STREED mode

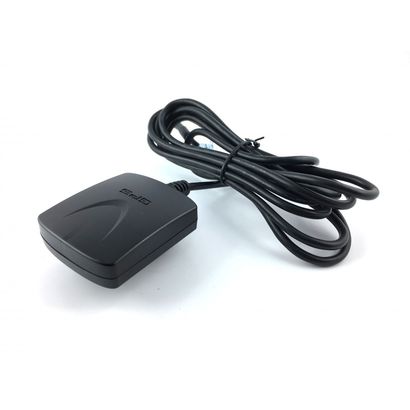

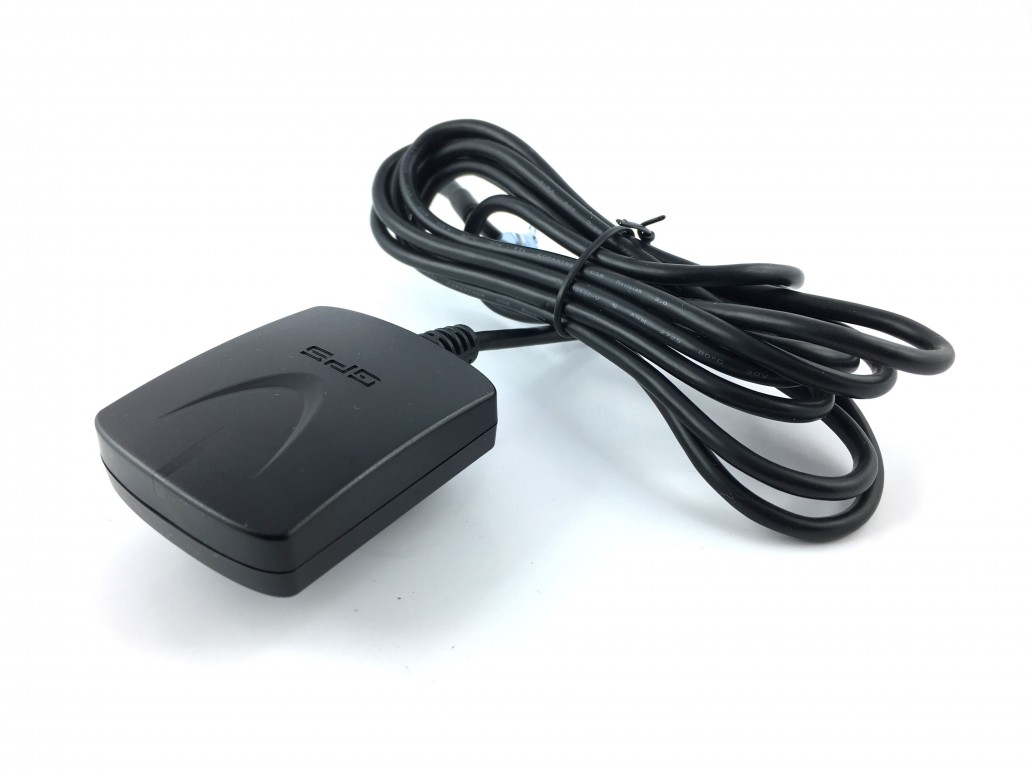

- 10Hz Trajectory and GPS speed acquisition, 66 parallel channels
- Chronograph whit 20 pre-loaded tracks, 500 laps per track
- Track Auto identification, 3 splits
- Best Lap, Ideal Lap, Best historical and daily values
- 20 high brightness fully customizable alarms
- 8 10-bits analog inputs, 2 10-bits analog Can-bus inputs
- 2 distinct sped inputs
- 1 RPM input
- Water, fuel, oil inputs with dedicated alarms
- Data download via USB key or via WiFi
- CAN BUS ready
- 16GB internal memory
- Integrated Lambda sensor controller
- Auto generated stoichiometric ratios table
- Video input
- Driver for external GoPRo via WiFi
- DDS (Danas Dynamic Settings)
Plug & Play kit supported bikes:
- Kawasaki: ZX6R 07-16, ZX636 12-18, ZX10R 08-10, ZX10R 11-15, ZX10R ECU Racing, ZX10R 15-19, Ninja 400
- Yamaha: R1 04-08, R1 15-20, R6 06-2016, R6 17-20, R3 17-19, R6 Mectronik
- Suzuki: GSXR 1000 07-08, GSXR 1000 09-10, GSXR 1000 17-19
- Honda: CBR 600RR 07-18, CBR 1000RR 08-11, CBR 1000RR SP 2017 (no HRC kit), CBR 1000 RR-R SP 2020, CBR 1000 RR-R 2020 HRC
- BMW: S1000RR 09-14, S1000RR HP4, S1000RR HL (Not HP4 but with central unit HP4 mapped), S1000RR 15-18 (central unit HP), S1000RR 19-21 (No electronic suspension)
- Ducati: 1198/1198S, 899/1199, 1299, V4, V4S, V4R
- MV: F3 675
- Aprilia: RSV4 APRC, RSV4 APRC ABS, RSV4 RF 15-16, RSV4 17-18
